RZ250R 3HM1 MODEL 1988 YPVS
45hp@9500rpm  &  3.5m.kg@9000rpm

VIN start 29L - 120 101 to 145 000

Model sold in JAPAN

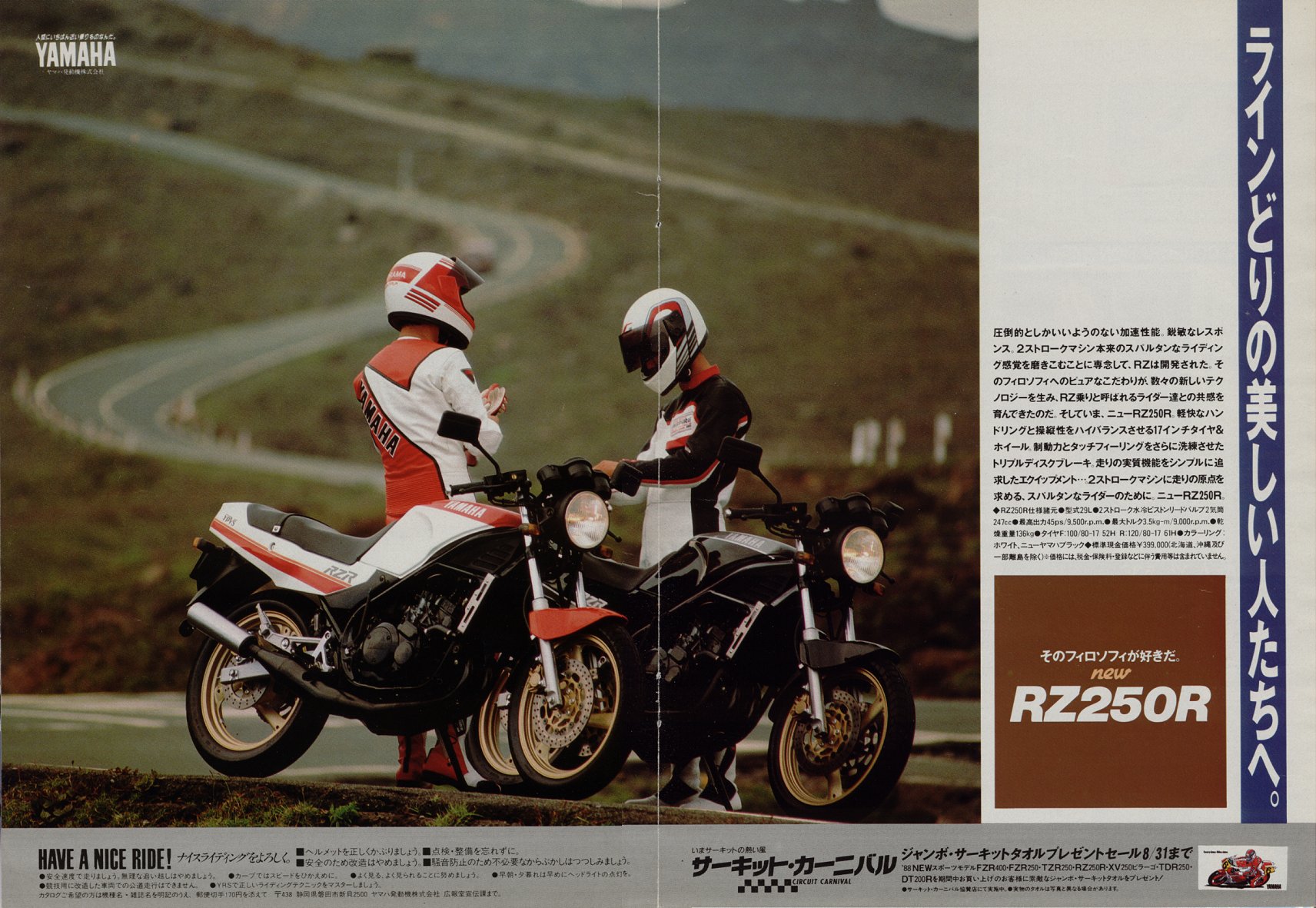

'88 Japanese BROCHURE
2 PAGES

REF: 8806 - 50D1@ - 011241

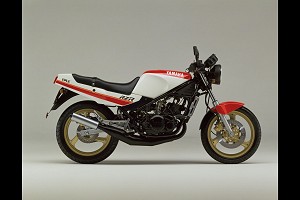

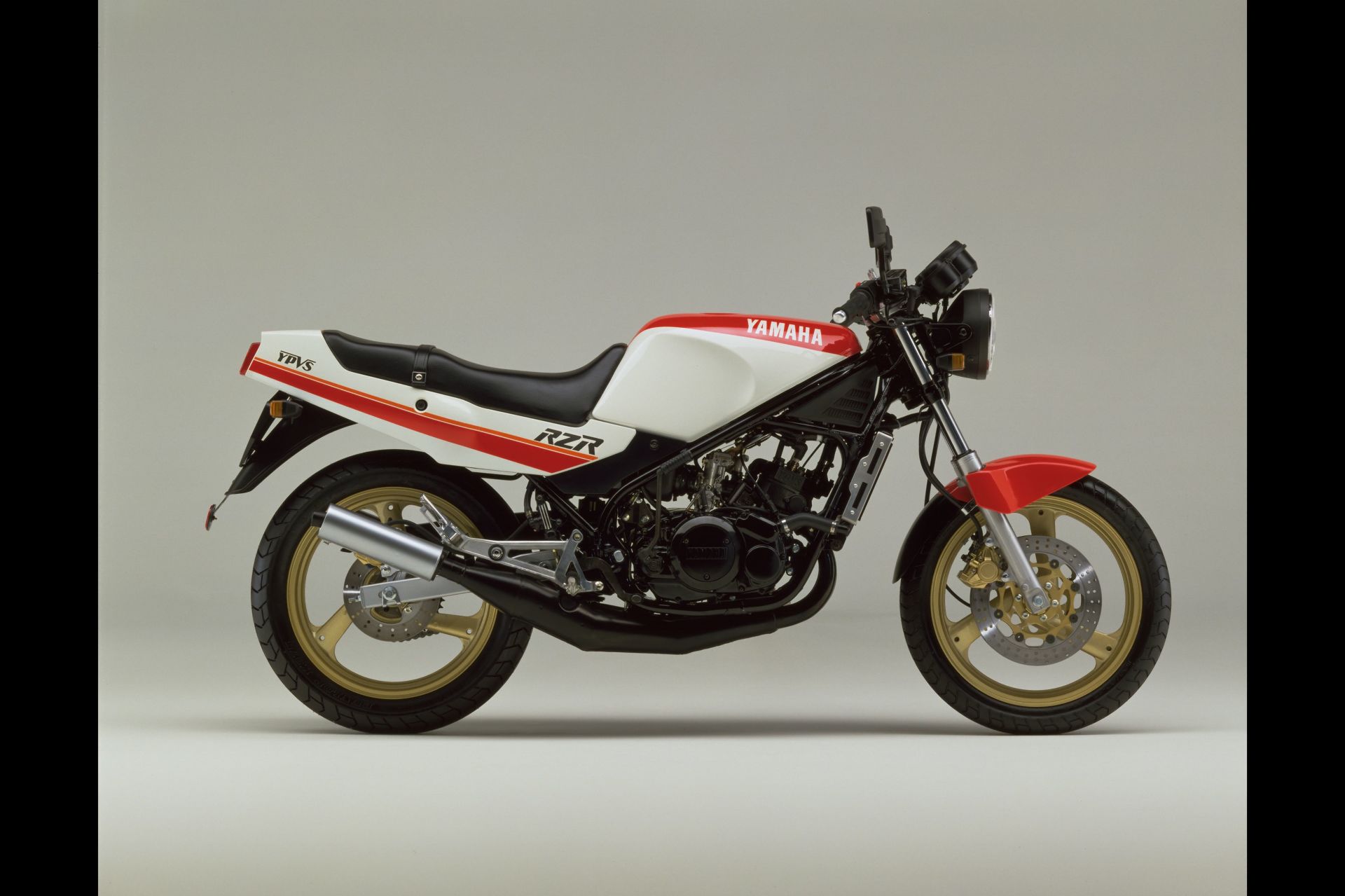

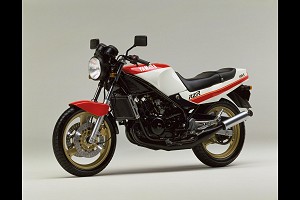

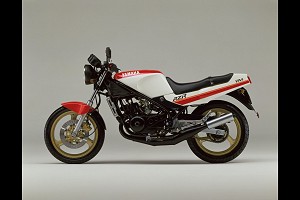

WHITE & RED MODEL

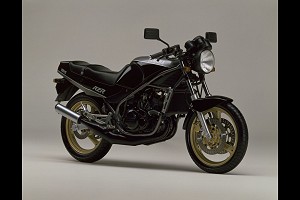

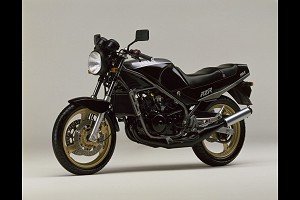

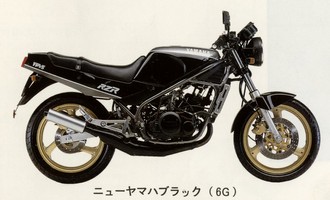

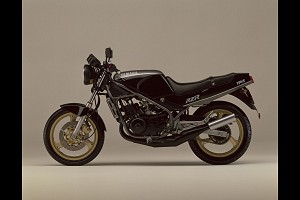

BLACK & GREY MODEL

WHITE & BLUE MODEL

This model was prepared by YAMAHA Japan but was not never sold for reason I don't know yet !



This model is the last model of RZ250 designed and sold for Japanese market by YAMAHA Japan: New front and rear ends with new wheels and larger tyres:

Front: 2.15 rim for 100/80-17 tyre - Rear: 2.5 rim for 120/80-17 tyre.



New specific parts created for this "3HM1"

so their part numbers starts with 3HM-xxxxx-xx

Rear indicator bracket.

Rear arm (10mm longer and 2mm wider).

Chain guard.

Head light bracket.

Fork.

Front wheel.

Lower front and rear brake hose.

Indicators.

Radiator + grill (carry over parts from the Brazilian '86 RD350 1YH model).

New parts on 3HM1 coming from other existing bikes:

TZR250 (2MA): Rear wheel + rear brake caliper + rear caliper bracket + front mudguard.

FZR250 (2RF): Fork tube.

FZR250 (2KR): Handle bar.

FZR400 (1WG): Rear disks brake + speedometer.

FZR400 (2TK): Front disks

XZ550: Rear mirrow view.

TZR250 (2XT): Tachometer.

TZR250 (2AW): Engine temperature.
