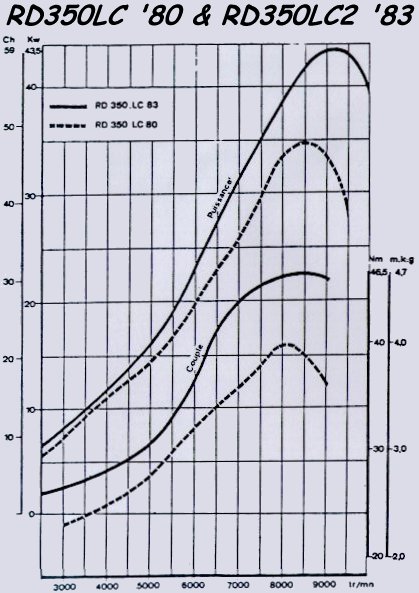

POWER/TORQUE CURVES OF RZ/RD 350 LC
| Displacement | 347 cm3 (352cm3 for 1WU model) |
| Bore x stroke | 64.0 x 54.0 (64.5x54.0 for 1WU model) |
| Compression ratio | 6.2:1 -YPVS , 6.0:1 +YPVS , 5.0:1 for Brazil |
|
|
|
|
Power
& torque @ rpm
|
|
| '80 | 47 hp @ 8500 rpm / 4.1m.kg @ 8000 rpm |
| '81 to '82 | 47 hp @ 8500 rpm / 4.1m.kg @ 8000 rpm |
| '83 to '85 (except USA) | 59 hp @ 9000 rpm / 4.8m.kg @ 8500 rpm |

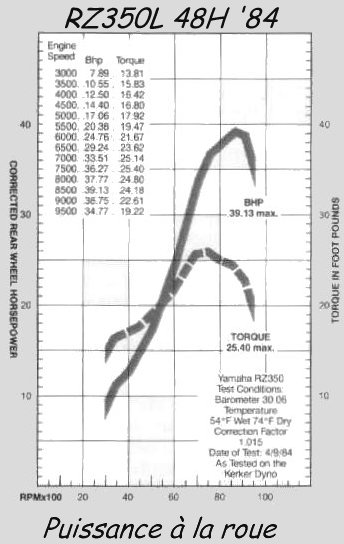

| 48H & 1EL ('84 - '85 USA) | 52 hp @ 8750 rpm / 4.2m.kg @ 7500 rpm |

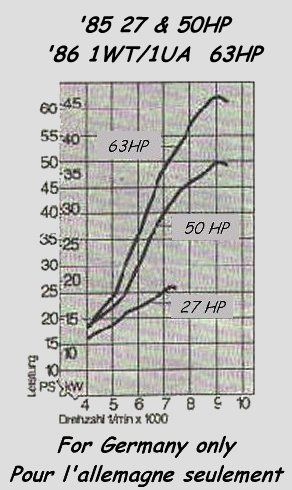

| '85 Germany | 27 hp @ 7250 rpm / 2.9m.kg @ 6500 rpm |
| '85 Germany | 50 hp @ 9000 rpm / 4.1m.kg @ 7250 rpm |
| '86 1WX,1XE Germany | 27 hp @ 6500 rpm / 2.9m.kg @ 6500 rpm |
| '86 1WW,1XA Germany | 50 hp @ 9000 rpm / 4m.kg @ 7500 rpm |

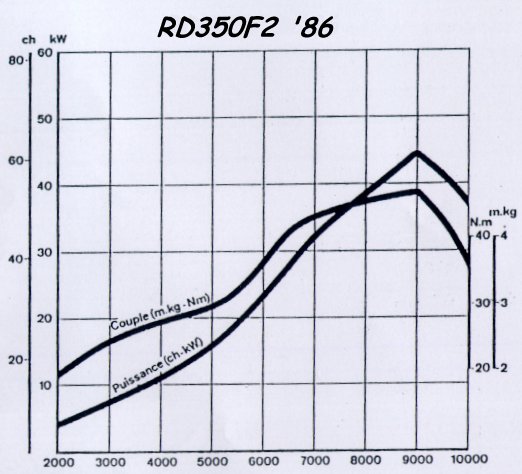

| '86 to '91 | 63 hp @ 9000 rpm / 5.0m.kg @ 9000 rpm |
| '86 to '93 in Brazil | 55 hp @ 9000 rpm / 4.74m.kg @ 8500rpm |

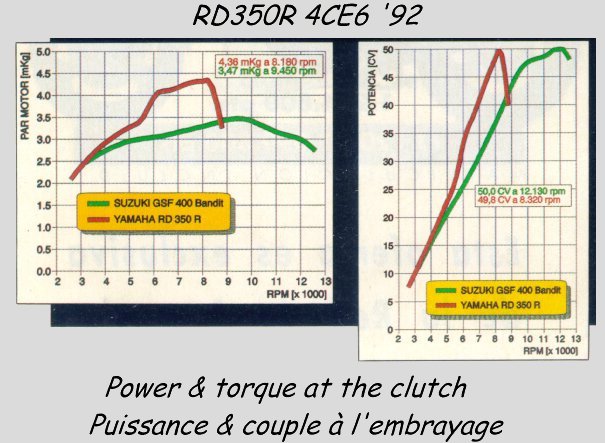

| 4CE ('92 to '95) | 59 hp @ 9000 rpm / 4.8m.kg @ 8500 rpm |
